High efficiency top seller solar pv module 410w

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

Product Attributes

Model No.: 410M10/TOPCON

Brand: HAOXUAN

Place Of Origin: China

Types Of: Half Cell, Bifacial, Double-Glass, All Black

Weight: 22kg

Connector: MC4 Compatible

Junction Box: IP68

Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa

Front Glass: AR Coated 3.2 mm tempered glass

Frame: Anodized aluminum alloy

Output Cables: 4.0mm², 50cm (+), 50cm (-), length can be customized

Solar Cells: Mono crystalline 182mm (2x54pcs)

External Dimensions: 1722x1134x30mm

Supply Ability & Additional Information

Packaging: Carton or Wooden Box

Productivity: 2GW/YEAR

Transportation: Ocean,Air,Land,Express

Place of Origin: CHINA

Supply Ability: 2000pcs/day

Certificate: ISO, TUV, CE, INMETRO, RETIE

HS Code: 8541430000

Port: Ningbo,Shanghai,Guangzhou

Payment Type: L/C,T/T

Incoterm: FOB,CIF,EXW

Packaging & Delivery

Selling Units:Watt/WattsPackage Type:Carton or Wooden Box

Product Name:

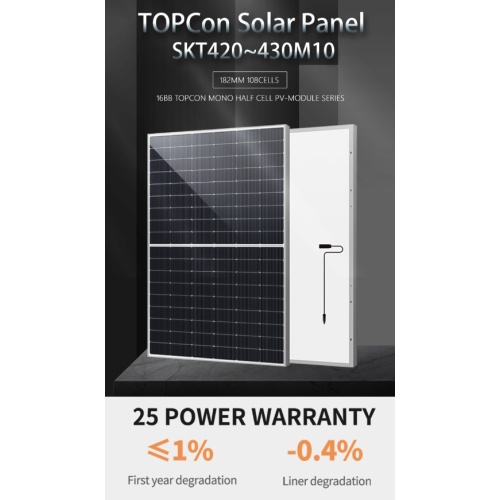

TOPCON Solar Panel 420~430M10 182MM 108CELLS 16BB TOPCon Mono Half Cell PV-Module Series

25 years power warranty

≤1% First year degradation

-0.4% Linear degradation

The new product uses N-type TOPCon technology and is fully enhanced in performance, power, Energy Density and reliability.

20240419111956 Png

20240418122204 Png

Module Type	420M10		250M10		430M10
	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power-Pmax(W)	420	316	425	320	430	323
Open Circuit Vottage-Voc(V)	38.11	36.20	38.30	36.38	38.49	36.56
Open Circuit Current-lsc(A)	14.07	11.36	14.15	11.42	14.23	11.49
Voltage at Pmax -Vmp(V)	31.51	29.34	31.70	29.50	31.88	29.63
Current at Pmax - Imp(A)	13.33	10.76	13.41	10.83	13.49	10.91
Module Efficiency -ηm(%)	21.51	/	21.76	/	22.02	/
Power Tolerance(W)	（0, +4.99W）
Maximum System Voltage(V)	1500Vdc (IEC / UL)
Maximum Series Fuse Rating (A)	25A
