Home > Products > Solar Panel > TOPCON Solar Panel > Title: High-Efficiency TOPCon 16BB 108cells Solar PV Module

Title: High-Efficiency TOPCon 16BB 108cells Solar PV Module
  • Title: High-Efficiency TOPCon 16BB 108cells Solar PV Module
  • Title: High-Efficiency TOPCon 16BB 108cells Solar PV Module
  • Title: High-Efficiency TOPCon 16BB 108cells Solar PV Module
  • Title: High-Efficiency TOPCon 16BB 108cells Solar PV Module

Title: High-Efficiency TOPCon 16BB 108cells Solar PV Module

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land,Air
Share:
  • Product Description
< >
Overview
Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery
Selling Units:
Set/Sets

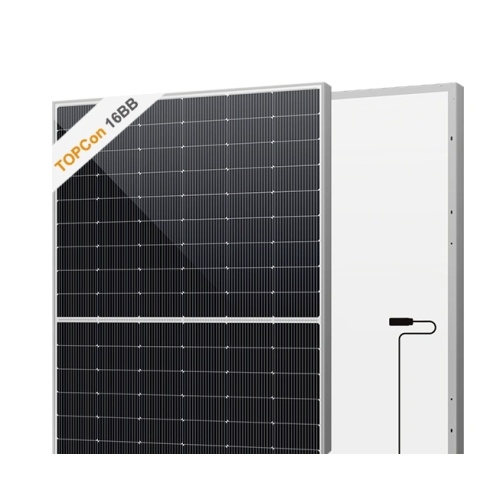

TOPCon 16BB 108cells Solar PV Module

Product Attributes

Model No.: SKT430M10/TOPCon
Place Of Origin: China
Types Of: Half Cell, Bifacial, Double-Glass, All Black
External Dimensions: 1722x1134x30mm
Weight: 22kg
Solar Cells: Mono crystalline 182mm (2x54pcs)
Front Glass: AR Coated 3.2 mm tempered glass
Frame: Anodized aluminum alloy
Junction Box: IP68
Output Cables: 4.0mm², 50cm (+), 50cm (-), length can be customized
Connector: MC4 Compatible
Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa
Brand: Sunket

Supply Ability & Additional Information

Packaging: Carton or Wooden Box
Productivity: 2GW/YEAR
Transportation: Ocean, Air, Land, Express
Place of Origin: CHINA
Supply Ability: 2000pcs/day
Certificate: ISO, TUV, CE, INMETRO, RETIE
HS Code: 8541430000
Port: Ningbo, Shanghai, Guangzhou
Payment Type: L/C, T/T
Incoterm: FOB, CIF, EXW

New Product Features

The new product uses N-type TOPCon technology and is fully enhanced in performance, power, Energy Density, and reliability.

The mass production efficiency of Sunket N-type TOPCON Solar cells has reached 24.5%, the bifacial ratio of modules is up to 85%, and the additional power generation gain has increased by more than 3%. In 2022, Sunket will continue to focus on improving the efficiency of mass production of batteries, leading the efficiency and economy of TOPCon Series products to a new high, and bringing customers higher installed capacity.

Our TOPCon Solar Panels use 16BB N-type Mono Solar Cells, SKT420~430M10

Solar Cells: 182mm 108cells

16BB TOPCon Mono Half Cell PV Module Series

20240425112023 Png 20240425112029 Png 20240425112036 Png

Technical Specifications

Module Type 420M10 425M10 430M10
STC NOCT STC NOCT STC NOCT
Maximum Power-Pmax(W) 420 316 425 320 430 323
Open Circuit Voltage-Voc(V) 38.11 36.20 38.30 36.38 38.49 36.56
Open Circuit Current-lsc(A) 14.07 11.36 14.15 11.42 14.23 11.49
Voltage at Pmax -Vmp(V) 31.51 29.34 31.70 29.50 31.88 29.63
Current at Pmax - Imp(A) 13.33 10.76 13.41 10.83 13.49 10.91
Module Efficiency -ηm(%) 21.51 / 21.76 / 22.02 /
Power Tolerance(W) (0, +4.99W) / / / / /
Maximum System Voltage(V) 1500Vdc (IEC / UL) / / / / /
Maximum Series Fuse Rating (A) 25A / / / / /
