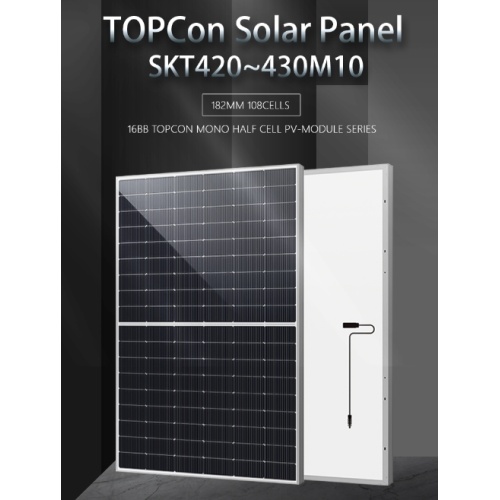

108cells 420W 430W TOPCON Solar PV Module

Product Attributes

Model No.:	420M10/TOPCon
Brand:	HAOXUAN
Place Of Origin:	China
Types Of:	Half Cell, Bifacial, Double-Glass, All Black
Weight:	22kg
Connector:	MC4 Compatible
Junction Box:	IP68
Mechanical Load:	Front Side Max. 5400Pa, Rear Side Max. 2400Pa
Front Glass:	AR Coated 3.2 mm tempered glass
Frame:	Anodized aluminum alloy
Output Cables:	4.0mm², 50cm (+), 50cm (-), length can be customized
Solar Cells:	Mono crystalline 182mm (2x54pcs)

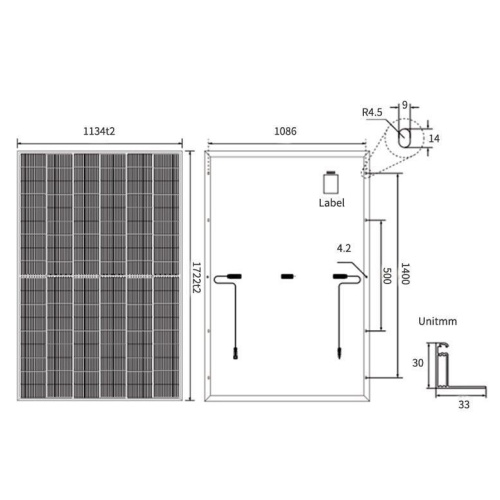

External Dimensions:	1722x1134x30mm

Supply Ability & Additional Information

Packaging:	Carton or Wooden Box
Productivity:	2GW/YEAR
Transportation:	Ocean, Air, Land, Express
Place of Origin:	CHINA
Supply Ability:	2000pcs/day
Certificate:	ISO, TUV, CE, INMETRO, RETIE
HS Code:	8541430000
Port:	Ningbo, Shanghai, Guangzhou
Payment Type:	L/C, T/T
Incoterm:	FOB, CIF, EXW

Packaging & Delivery

Selling Units: Watt/Watts
Package Type: Carton or Wooden Box

Product Name

TOPCON Solar Panel, TOPCON Solar PV Module, TOPCON PV Module

The new product uses N-type TOPCon technology and is fully enhanced in performance, power, Energy Density and reliability.

Technical Specifications

Module Type	420M10		425M10		430M10
Module Type	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power-Pmax(W)	420	316	425	320	430	323
Open Circuit Vottage-Voc(V)	38.11	36.20	38.30	36.38	38.49	36.56
Open Circuit Current-lsc(A)	14.07	11.36	14.15	11.42	14.23	11.49
Voltage at Pmax -Vmp(V)	31.51	29.34	31.70	29.50	31.88	29.63
Current at Pmax - Imp(A)	13.33	10.76	13.41	10.83	13.49	10.91
Module Efficiency -ηm(%)	21.51	/	21.76	/	22.02	/
Power Tolerance(W)	(0, +4.99W)	/	/	/	/	/
Maximum System Voltage(V)	1500Vdc (IEC / UL)	/	/	/	/	/
Maximum Series Fuse Rating (A)	25A	/	/	/	/	/
