TOPCON 16BB 182mm 108 Cells Half-Cut Solar Panels
  • TOPCON 16BB 182mm 108 Cells Half-Cut Solar Panels
  • TOPCON 16BB 182mm 108 Cells Half-Cut Solar Panels
  • TOPCON 16BB 182mm 108 Cells Half-Cut Solar Panels
  • TOPCON 16BB 182mm 108 Cells Half-Cut Solar Panels

TOPCON 16BB 182mm 108 Cells Half-Cut Solar Panels

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Air,Land
Share:
  • Product Description
< >
Overview
Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Air,Land

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery
Selling Units:
Set/Sets
TOPCON 16BB 182mm 108cells Half-cut Solar Panels

Product Name:

 TOPCON Solar Panel, TOPCON Solar PV Module, TOPCON PV Module

TOPCON Solar Panel 420~430M10 182MM 108CELS

16BB TOPCON MONO HALF CELL PV-MODULE SERIES

25 POWER WARRANTY

≤1% First year degradation

-0.4% Linear degradation

The new product uses N-type TOPCon technology and is fully enhanced in performance, power, Energy Density, and reliability.

The mass production efficiency of Haoxuan N-type TOPCon solar cells has reached 24.5%, the bifacial ratio of modules is up to 85%, and the additional power generation gain has increased by more than 3%. In 2022, Haoxuan will continue to focus on improving the efficiency of mass production of batteries, leading the efficiency and economy of TOPCon Series products to a new high, and bringing customers higher installed capacity.

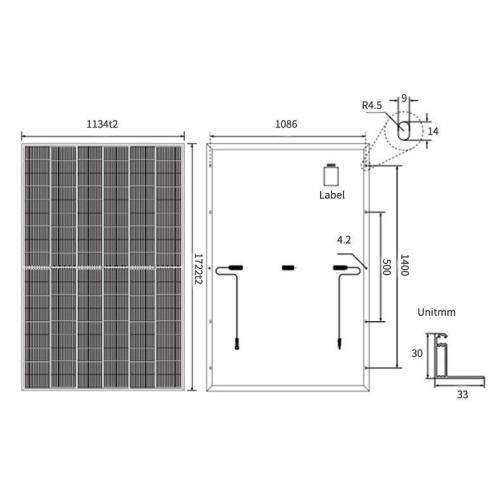

20240423113859 Png 20240423113908 Png
Module Type 420M10 425M10 430M10
  STC NOCT STC NOCT STC NOCT
Maximum Power-Pmax(W) 420 316 425 320 430 323
Open Circuit Voltage-Voc(V) 38.11 36.20 38.30 36.38 38.49 36.56
Open Circuit Current-Isc(A) 14.07 11.36 14.15 11.42 14.23 11.49
Voltage at Pmax -Vmp(V) 31.51 29.34 31.70 29.50 31.88 29.63
Current at Pmax - Imp(A) 13.33 10.76 13.41 10.83 13.49 10.91
Module Efficiency -ηm(%) 21.51 / 21.76 / 22.02 /
Power Tolerance(W) (0, +4.99W)
Maximum System Voltage(V) 1500Vdc (IEC / UL)
Maximum Series Fuse Rating (A) 25A
20240423114128 Png

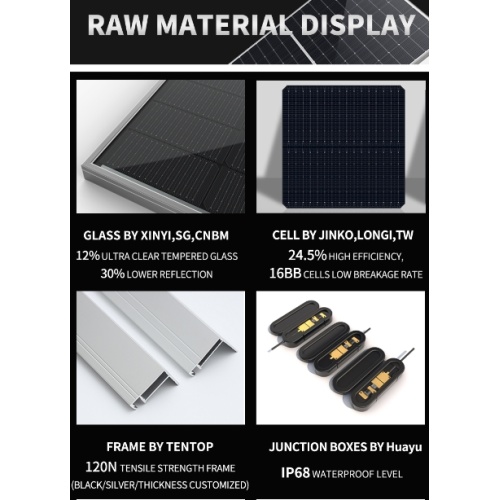

RAW MATERIAL DISPLAY

GLASS BY XINYI, SG, CNBM

12% ULTRA CLEAR TEMPERED GLASS

30% LOWER REFLECTION



CELL BY JINKO, LONGi, TW

24.5% HIGH EFFICIENCY,

16BB CELLS LOW BREAKAGE RATE



FRAME BY TENTOP

120N TENSILE STRENGTH FRAME

(BLACK/SILVER/THICKNESS CUSTOMIZED)



JUNCTION BOXES BY Huayu

IP68 WATERPROOF LEVEL



PV CONNECTOR BY Huayu

500N TENSILE STRENGTH



WATERPROOF LABELS

Product Categories : Solar Panel > TOPCON Solar Panel
