All black 440w 450w monocrystalline 450w
Solar Panel Product Attributes
- Model No.: 450M6
- Brand: HAOXUAN
- Place Of Origin: China
- Types Of: Perc, Half Cell
- Dimension: 2094*1038*35mm
Supply Ability & Additional Information
- Packaging: Standard Exported Pallet
- Productivity: 2000pcs/day
- Transportation: Ocean, Land, Air
- Place of Origin: China
- Supply Ability: 1GW/Year
- Certificate: CE, TUV, INMETRO, PSI, COC
- HS Code: 8541402000
- Port: Shanghai, Guangzhou, Ningbo
- Payment Type: L/C, T/T
- Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
Packaging & Delivery
Selling Units: watt
Packaging Type: Standard Exported Pallet
Description
Half-cut Mono Solar Panel, Modules supplier & manufacturer from China, Monocrystalline Panels Supplier

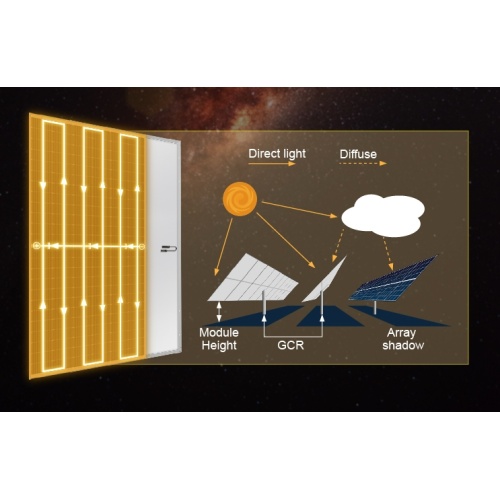

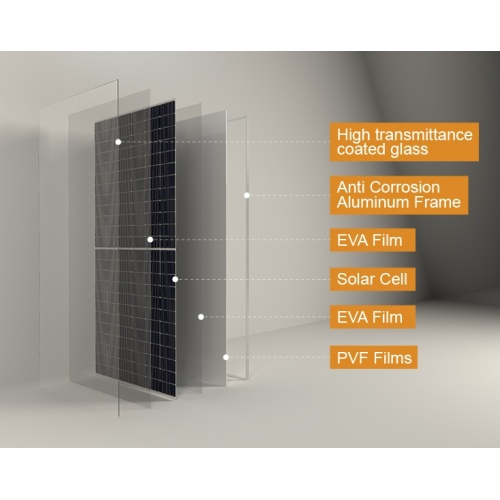

Assembled with high-efficiency PERC A Grade Solar Cell, the half-cut technology design of the modules gains higher power output, better temperature-dependent performance, reduced shading effect on the energy conversion, lower risk of hot spot, as well as enhanced tolerance for mechanical loading. Haoxuan redefined the high-efficiency module series by integrating 166mm silicon wafers with multi-busbar and half-cut cell technologies. The maximum Monocrystalline Solar Panel Efficiency of the new series is 20.37%, and the maximum power output of this high-quality Monocrystalline Panels is 450W.
Mars series is based on 166mm large size silicon wafer, Silicon Solar Cell, PERC single crystal cell, using innovative version design, power can exceed 450W, efficiency up to 20.37%, leading the industry to formally enter the new era of photovoltaic 5.0. While the excellent temperature coefficient and low radiation performance also improve power generation. Large and extraordinary, not only the stacking power, the module efficiency increases synchronously, up to 20.37%.
Solar Panel Modules, PV Solar Panel, Monocrystalline Solar Module, Solar Panel From China, 450watts Solar Panel
Images
Technical Specifications
| Module | 430~450 M6-24/144H |
| Rated Power-Pm (W) | 430, 435, 440, 445, 450 |
| Open-Circuit Voltage-Voc(V) | 49.2, 49.4, 49.6, 49.8, 50.0 |
| Short-Circuit Current-Isc(A) | 11.19, 11.26, 11.33, 11.40, 11.47 |
| Working Voltage-Vmp(V) | 40.6, 40.8, 41.0, 41.2, 41.4 |
| Working Current-Imp(A) | 10.60, 10.67, 10.74, 10.81, 10.88 |
| Module Efficiency (%) | 19.46, 19.69, 19.92, 20.14, 20.37 |
Grade A Material
