High-Efficiency 550W and 500W JA Solar Monocrystalline Solar Panels

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

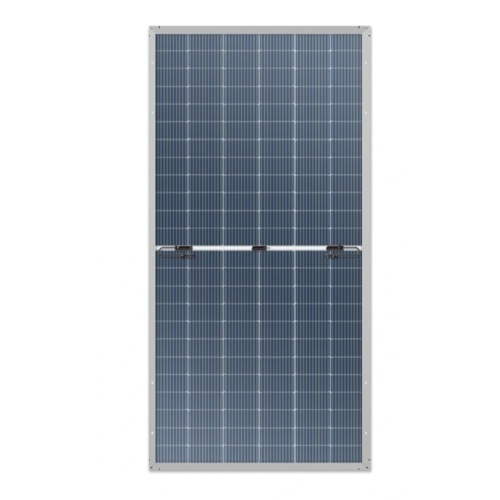

550W 500W JA Solar Module Mono Solar Panels

Product Attributes

Model No.: HX550M10-144HB
Place Of Origin: China
Types Of: Perc, Half Cell, Bifacial, Double-Glass, All Black
Size: Customized

Supply Ability & Additional Information

Packaging: Standard Exported Pallet
Productivity: 4000pcs/day
Transportation: Ocean, Land, Air
Place of Origin: China
Supply Ability: 1GW/Year
Certificate: CE, TUV, INMETRO, PSI, CQC
HS Code: 8541402000
Port: Shanghai, Guangzhou, Ningbo
Payment Type: L/C, T/T
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Packaging & Delivery

Selling Units: Piece/Pieces
Package Type: Standard Exported Pallet

Mono Solar Panel

What are Mono Crystalline Solar Panels? A monocrystalline Solar Panel is a solar panel comprising monocrystalline solar cells. These cells are made from a cylindrical silicon ingot grown from a single crystal of silicon of high purity in the same way as a semiconductor. The cylindrical ingot is sliced into wafers forming cells. To maximize the utility of the cells, the circular wafers are wire cut to an octagonal-shaped wafer. These cells have a unique look because of the Oct.

Module

HX 530~550 M10-144HB	530	535	540	545	550
Rated Power-Pm (W)	530	535	540	545	550
Open-circuit Voltage-Voc (V)	49.30	49.45	49.60	49.75	49.90
Short-circuit Current-Isc (A)	13.72	13.79	13.86	13.93	14.00
Working Voltage-Vmp (V)	41.31	41.47	41.64	41.80	41.96
Working Current-Imp (A)	12.83	12.90	12.97	13.04	13.11
Module Efficiency (%)	20.5	20.7	20.9	21.1	21.3

Product Categories : Mono Solar Panel > Half-cut Mono Solar Panel
