All Black 132 Cells Mono Solar Panel with 490W Output
  • All Black 132 Cells Mono Solar Panel with 490W Output
  • All Black 132 Cells Mono Solar Panel with 490W Output
  • All Black 132 Cells Mono Solar Panel with 490W Output
  • All Black 132 Cells Mono Solar Panel with 490W Output

All Black 132 Cells Mono Solar Panel with 490W Output

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land,Air
Share:
  • Product Description
< >
Overview
Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery
Selling Units:
Set/Sets
All Black 132 cells Mono Solar Panel 490w

Product Attributes

  • Model No.: 490M10-20
  • Brand: Haoxuan
  • Place Of Origin: China
  • Types Of: Perc, Half Cell, Bifacial, Double-Glass, All Black

Supply Ability & Additional Information

  • Packaging: Standard Exported Pallet
  • Productivity: 4000pcs/day
  • Transportation: Ocean, Land, Air
  • Place of Origin: China
  • Supply Ability: 1GW/Year
  • Certificate: CE, TUV, INMETRO, PSI, COC
  • HS Code: 8541402000
  • Port: Shanghai, Guangzhou, Ningbo
  • Payment Type: L/C, T/T
  • Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP

Packaging & Delivery

Selling Units: Watt/Watts
Package Type: Standard Exported Pallet

Product Showcase

20240423131347 Png 20240423131402 Png 20240423131607 Png

Product Description

All Black 132 cells Mono Solar Panel 490w

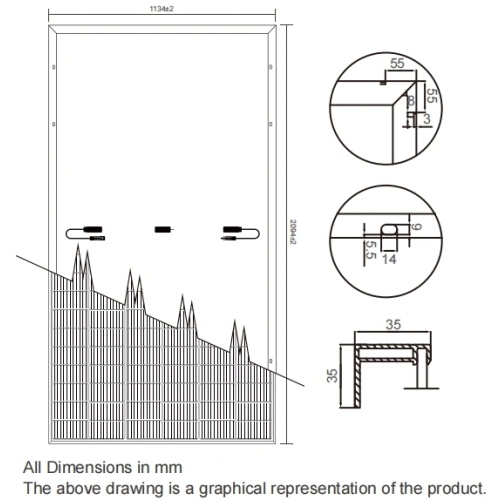

Mechanical Specifications

solar Cells 182mm(132HC)
Maximum System Voltage(V) 1500Vdc (IEC/UL)
Dimensions 2094*1134*35mm
Maximum Series Fuse Rating (A) 25A
Weight 26.3kg
Operating Temperature -40~+85℃
Front Cover 3.2 mm thick, tempered glass
Power Tolerance(W) (0,+4.99)
back Cover TPT(Tedlar-PET-Tedlar)
Output Cables 4.0 mm2, Cable length:1200 mm
Encapsulation Material EVA(Ethylene Vlinyl acetate)
Connector MC4 Compatible
Frame Anodized aluminum alloy
Mechanical Load 5400 Pa
Frame Color Silvery
Junction Box IP68

Electrical Specifications

Module type 490M10-20
Maximum Power (Pmax) 490W
Open Circuit Voltage (Voc) 45.33V
Short Circuit Current (Isc) 13.79A
Max. Power Voltage (Vm) 37.99V
Max. Power Current (Im) 12.90A
Temperature coefficients of Isc (%) 0.045/℃
Temperature coefficients of Voc (%) -0.275/℃
Temperature coefficients of Pm (%) -0.350/℃
Module Efficiency (%) ≥20.64%
20240423125347 Png
