EU Warehouse: All-Black Mono Solar Panel - 400W/410W Options

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Transportation:

Land,Air,Ocean

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Land,Air,Ocean

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

EU warehouse all-black Mono Solar Panel 400w 410w

Product Attributes

Model No.: 405M10
Brand: HAOXUAN
Place Of Origin: China
Types Of: Perc, Half Cell, Bifacial, Double-Glass, All Black
Frame: Anodized Aluminium Alloy
Product Name: Solar Panel
External Dimensions: 1724x1134x30mm
Weight: 20.5g
Solar Cells: Mono 182*182mm
Front Glass: AR Coated 2.0+2.0 mm tempered glass
Junction Box: IP68
Output Cables: 1.2m
Connector: MC4 EVO2
Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa

Supply Ability & Additional Information

Packaging: carton or wooden box
Productivity: 2000pcs per day
Transportation: Ocean, Land, Air
Place of Origin: China
Supply Ability: 2000pcs per day
Certificate: ISO9001, ISO14001, ISO45001
HS Code: 8541430000
Port: Shanghai, Guangzhou, Ningbo
Payment Type: L/C, T/T
Incoterm: FOB, CFR, CIF, EXW, DDU

Packaging & Delivery

Selling Units: Watt/Watts
Package Type: carton or wooden box

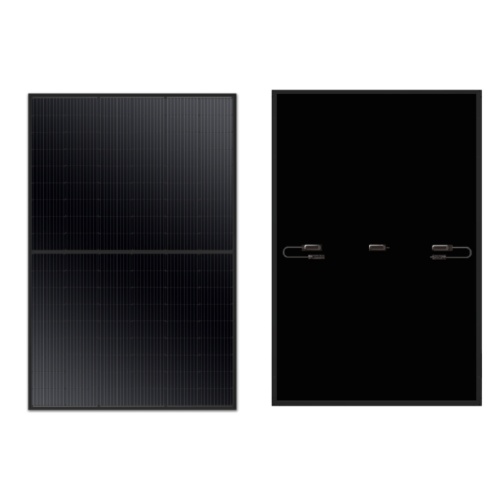

All Black Solar PV Module

All Black Modules are ideal for use in roofs, carports and building photovoltaics (BIPV). The black roof and building façade are fashionable and beautiful, and at the same time have power generation benefits, which are especially favored by distributed users in Japan, the Middle East, Europe and the United States.

The cell adopts nano-scale black silicon texturing technology, which reduces the reflectivity of the cell and improves the utilization rate of sunlight.

HAOXUAN Solar PV Modules also integrate various technologies such as halving and MBB to achieve higher power output and reliability.

Module	385~410M10
Rated Power-Pm (W)	385, 390, 395, 400, 405, 410
open-circuit Voltage-Voc(V)	36.76, 36.85, 36.98, 37.07, 37.23, 37.32
short-circuit Current-Isc(A)	13.53, 13.61, 13.70, 13.79, 13.87, 13.95
Working Voltage-Vmp(V)	30.44, 30.64, 30.84, 31.01, 31.21, 31.45
Working Current-Imp(A)	12.65, 12.73, 12.81, 12.90, 12.98, 13.04
Module Efficiency (%)	19.8, 20.0, 20.2, 20.5, 20.8, 21.0
