High Efficiency 72 Cells Mono 380W Solar Panel: Powering Your Needs

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

High Efficiency 72 Cells Mono 380w Solar Panel

Product Attributes

Model No.:	HX380M6-24
Brand:	HAOXUAN
Place Of Origin:	China
Types Of:	Perc

Supply Ability & Additional Information

Packaging:	Standard Exported Pallet
Productivity:	4000pcs/day
Transportation:	Ocean, Land, Air
Place of Origin:	China
Supply Ability:	1GW/Year
Certificate:	CE, TUV, INMETRO, PSI, COC
HS Code:	8541402000
Port:	Shanghai, Guangzhou, Ningbo
Payment Type:	L/C, T/T
Incoterm:	FOB, CFR, CIF, EXW, FCA, CPT, CIP

Packaging & Delivery

Selling Units: Piece(s)

Package Type: Standard Exported Pallet

Products Description

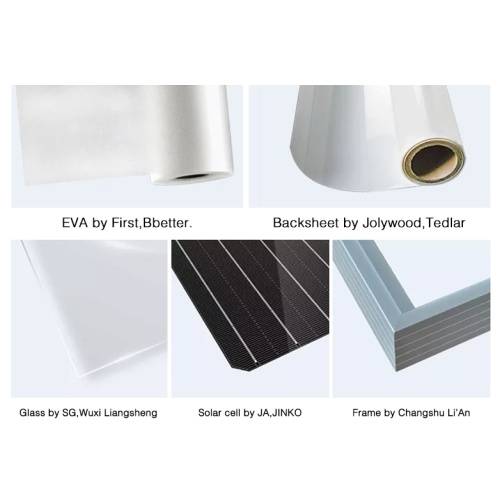

Based on Haoxuan's leading multi-busbar technology, the modules adopt the 158mm silicon wafer, non-destructive cutting and high-density interconnect technologies, which together allow it to exceed 400W power output and 20.37% module efficiency. By virtue of low-voltage and higher module string power output, the series unlocks huge potential for further reducing balance-of-system costs. All raw materials are Tie1, like JA solar cells, FIRST EVA film and so on with 12years quality warranty and 25years power warranty. It has lots of advantages as below than other panels: Higher power output, better temperature coefficient, less occlusion loss, stronger mechanical performance, excellent performance in low-light environments, 100% inspection to guarantee the reliability of Solar Systems.

Specifications

Module	HXxxxM-24(72cells)
Maximum Power-Pmax (W)	380, 385, 390, 395, 400
Open Circuit Voltage-Voc(V)	48.9, 49.1, 49.3, 49.5, 49.8
Short Circuit Current-Isc(A)	9.75, 9.92, 10.12, 10.23, 10.36
Voltage at Pmax-Vmp(V)	40.5, 40.8, 41.1, 41.4, 41.7
Current at Pmax-Imp(A)	9.39, 9.44, 9.49, 9.55, 9.6
Module Efficiency- ηm(%)	19.16, 19.42, 19.67, 19.92, 20.17

Grade A Material

Packing Information

Model	HXxxxM-24(72cells)
Module per box	26 pieces
Module per 40' HQ	616 pieces

Note: The above packing information contained in this web is subject to change without notice. We will offer wooden box packing with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
