12v 150AH GEL
Battery inverter for 3kw system
Product Attributes
Model No.: Solar battery
Brand: HAOXUAN
Warranty Period: Other
Place Of Origin: China
Types Of: Perc
Supply Ability & Additional Information
Packaging: Based on our normal standard corrugated carton box
Productivity: 1000pcs/day
Transportation: Ocean
Place of Origin: China
Supply Ability: 1GW/year
Certificate: TUV, CE, INMETRO, TUV SGS, CE SGS, ISO 9001, ISO 14001, CQC
HS Code: 8541402000
Port: SHANGHAI, GUANGZHOU, NINGBO
Payment Type: L/C, T/T
Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP
Packaging & Delivery
Selling Units: Set/Sets
Package Type: Based on our normal standard corrugated carton box
Product Description
- Container and lid: PP material, based on the heat sealing technology to avoid leak of the electrolyte.
- Negative plate: Thick with cage design for improved holding of the active material and high electrical conductivity.
- Separator: Microporous polyethylene envelops, to ensure high performance and complete insulation between positive and negative plates, while allowing the free flow of electrolyte throughout the cell.
- Positive plate: Matured tubular positive plate technology, use imported non-woven calandria in all plate calandria.
- Terminal: Positive and negative terminal with large copper core cast lead alloy to ensure the battery large current discharge performance.
- Safety valve: Unique mist collection reflux design, reduces water loss, and reduces maintenance frequency.
- Flexible Connector: With copper core to avoid loose caused by vibration and facilitate maintenance. Holes reserved on the protection cover of the connector for testing the battery voltage.

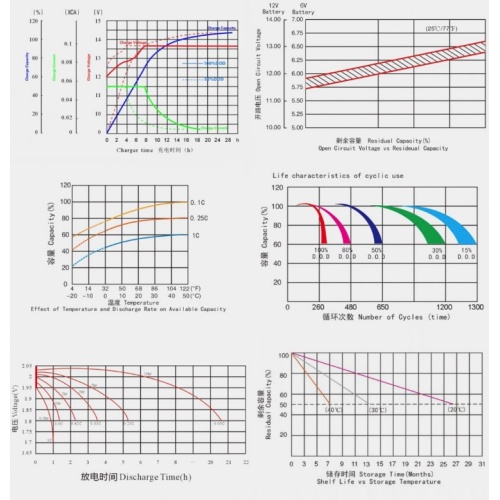

Data
| Battery Model | 6-GFM--150(12V150AH) |
| Nominal Voltage | 12V |
| Typical Weight | 40kg |
| Internal Resistance | Approx 6.7mΩ |
| Float Voltage | 13.5--13.8V/cell@25°C(77°F) |
| Charge Current | 15.0A(Recommendation)30.0A(Maximum) |
| Equalize and Cycle Service | 14.6V~14.8V/cell@25°C(77°F) |
| Self Discharge | The residual capacity is above 94% after 90 days storage(25°C/77°F) |
Images
Application
