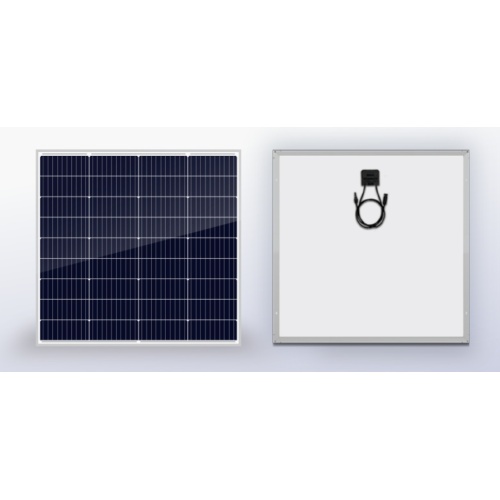

182mm 100W Mono Customized Solar Panel
  • 182mm 100W Mono Customized Solar Panel
  • 182mm 100W Mono Customized Solar Panel
  • 182mm 100W Mono Customized Solar Panel
  • 182mm 100W Mono Customized Solar Panel

182mm 100W Mono Customized Solar Panel

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land,Air
Share:
  • Product Description
< >
Overview
Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery
Selling Units:
Set/Sets



Product Attributes

Model No.: 100M10

Brand: HAOXUAN

Place Of Origin: China

Types Of: Perc, Half Cell, Bifacial, Double-Glass, All Black

Frame: Aluminum

Type: 100M10

Maximum Power: 100W

Dimensions: 720*765*30mm

Weight: 5.83kg

Solar Cells: Mono crystalline 182X72.8mm (4X9pcs)

Front Glass: 3.2 mm tempered glass

Junction Box: IP67

Output Cables: 50cm, length can be customized

Connector: MC4 Compatible

Supply Ability & Additional Information





182mm Solar PV Module





The excellence of the 182mm size silicon wafer is outstanding, and its kWh cost advantage is obvious, and because it has considerable power, feasible transportation, controllable cost, and a large number of applicants. It is undoubtedly the most ideal silicon wafer size standard and module size standard at present.



Products Description



20240419130224 Png20240419130230 Png20240419130238 Png20240419130245 Png



Module

100M10

Rated Power-Pm (W)

100

Open-circuit Voltage-Voc(V)

24.47

Short-circuit Current-Isc(A)

5.02

Working Voltage-Vmp(V)

21.03

Working Current-Imp(A)

4.76

Module Efficiency (%)

18.16
