Household Energy Powerwall: 5kWh 48V Li-Ion Battery

Get Latest Price

Payment Type:

L/C,T/T

Incoterm:

FOB,CFR,CIF

Min. Order:

1 Set/Sets

Transportation:

Ocean,Land,Air

Contact Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery

Selling Units:: Set/Sets

Household Energy Powerwall 5kwh 48v Li Ion Battery

Product Attributes

Model No.	LFP5KWH/10KWH
Brand	HAOXUAN
Place Of Origin	China
Certification	Ul, Ce
Colour	White, Black
Warranty Period	10years
Battery Type	Lithium Ion, LiFePO4
Cycle Life	6000 times
Voltage	51.2V
Capacity	5kwh/10kwh
Application	Solar Energy System
Waterproof Level	IP67
OEM/ODM	Acceptable

Supply Ability & Additional Information

Packaging	Carton or Wooden Box
Productivity	1GWH/YEAR
Transportation	Ocean, Air, Land, Express
Place of Origin	CHINA
Supply Ability	1000pcs/day
Certificate	ISO, TUV, CE
HS Code	8541430000
Port	Ningbo, Shanghai, Guangzhou
Payment Type	L/C, T/T
Incoterm	FOB, CIF, EXW, CFR, DDP, DDU

Packaging & Delivery

Selling Units: Set/Sets
Package Type: Carton or Wooden Box

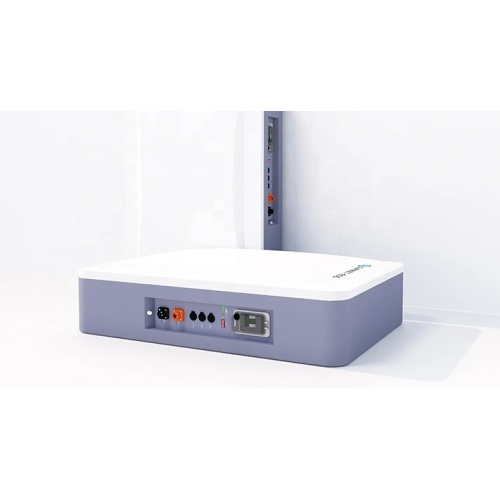

Our wall-mounted lithium batteries are divided into two types: 5KWH and 10KWH. The main material of the Lithium Battery is the Battery cell. The battery cell we use is A+ grade battery cell, which is the best.

Related Key words: Lithium Battery, Lithium Storage Battery, Lithium-ion Solar batteries, 10kw Power Wall Lifepo4 Battery, Powerwall Lithium Battery

Electrical Characteristics

Module Type	LFP 5kWh/LV	LFP 10kWh/LV
Total Energy*	5kWh	5kWh
Usable Energy(DC)*	9.2kWh
Nominal Dis-/Charge Power	3kW	4.6kW
Peak Power(Only Discharge)	7kWh for 3 seconds	10kWh for 3 seconds
Constant Current(Only Discharge)	100A	100A
Voltage	48~56Vd.c	48~56Vd.c
Nominal Voltage	51.2Vd.c	51.2Vd.c
Nominal Current	60A	100A
Max. Charge Voltage	59.2V±0.5V d.c	59.2V±0.5V d.c
Weight	65kg	125kg
Dimension(mm)	490(550)650(700)196(216)mm	585(645)940(995)205(225)mm
Safety	CE UN38.3	CE UN38.3
Max.recommended DOD	90%
Operating Condition	Indoor or outdoor
Operating Charge	From 0~45℃
Temperature Discharge	From -10~50℃
Humidity	4~100% (No condensed water)
Pollution Degree	3
Over Voltage Category	II
Cooling Type	Natural cooling
Case Material	Metal + Plastic
IP Rating	IP 65
Protective Class	I
Max. Number of Parallel or Series	16
Warranty	10 years
Life Span	>15 years
Communication	CAN
Protection Mode	Triple hardware protection
Battery Protection	Over-current/Over-voltage/Short circuit/ Under-voltage
Hazardous Material Classification	9

Product Categories : Battery > Lithium Ion Phosphate Battery
