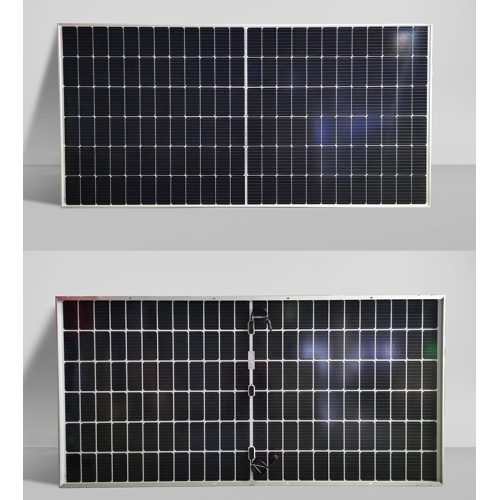

144cells HJT PV Module: Enhancing Solar Energy Efficiency

Product Attributes

• Model No.: 460M6/HJT
• Brand: HAOXUAN
• Place Of Origin: China
• Types Of: Hjt, Half Cell, Double-Glass, Bifacial, All Black
• Dimension: 2094x1038x30mm
• Weight: 27kg
• Solar Cells: HJT Mono crystalline 166X83mm (2x72pcs)
• Front Glass: AR Coated 2mm+2mm tempered glass
• Frame: Anodized aluminum
• Junction Box: IP68, 3 bypass diodes
• Output Cables: 4.0mm², 50cm (+), 50cm (-), length can be customized
• Connector: MC4 Compatible
• Mechanical Load: Front Side Max. 5400Pa, Rear Side Max. 2400Pa

Supply Ability & Additional Information

• Packaging: Carton/Wooden Box
• Productivity: 2GW/YEAR
• Transportation: Ocean, Air, Land
• Place of Origin: CHINA
• Supply Ability: 2000pcs/day
• Certificate: ISO, TUV, CE, CQC, INMETRO, RETIE
• HS Code: 8541430000
• Port: Shanghai, Ningbo, Shenzhen
• Payment Type: L/C, T/T
• Incoterm: FOB, CIF, EXW

Packaging & Delivery

Selling Units: Watt/Watts

Package Type: Carton/Wooden Box

Haoxuan has launched HJT Solar modules, which have the following 10 advantages:

• Higher conversion efficiency: higher installed capacity within a limited installation area and lower BOS cost;
• Higher reliability: Our product design is mature and has been tested by the market. Compared with large-sized components, it is more effective in resisting wind load and snow pressure, and it is not easy to cause frame damage, glass burst, and a large number of hidden cracks to cause excessive attenuation of components.
• Low attenuation rate: 90% power line quality guarantee is still available after 30 years of use;
• Low temperature coefficient of -0.24%: 2%-3.9% higher power generation per watt compared to conventional PERC;
• Better low-light power generation performance: HJT adopts N-type silicon wafer technology, which generates 1% more electricity per watt compared to single crystal PERC;
• No PID, no LID attenuation: lower attenuation of components in the whole life cycle and higher power generation;
• Double-sided rate as high as 90%+: the backside of our heterojunction modules can have more than 90% and at least 423W of backside power generation, and the power generation superposition is higher after double-sided installation;
• Lower LCOE: At present, compared with PERC single crystal technology, our heterojunction technology is more advanced, achieving the lowest LCOE of power generation, faster payback period and maximum benefit;
• Good matching: suitable for photovoltaic grid-connected inverters and photovoltaic tracking brackets used in domestic mainstream;
• Cost-effective.

30 YEARS 90%+ OUTPUT

22.1% ULTRA-HIGH EFF

90%+ BIFACIALITY

-0.24%/℃ LOW TEMP COEFF

NO PID NO LID

LOW-LIGHT PERFORMANCE

Electrical Characteristics (STC/NOCT)

STC: Irradiance 1000W/m2，Cell Temperature 25℃，Air Mass 1.5

NOCT: Irradiance 800W/m2，Ambient Temperature 20℃，Air Mass 1.5，Wind Speed 1m/s
