Home > Products > Solar Power System > Hybrid Solar System > Title: 10kW Solar Panel Hybrid Home System Overview

Title: 10kW Solar Panel Hybrid Home System Overview
  • Title: 10kW Solar Panel Hybrid Home System Overview
  • Title: 10kW Solar Panel Hybrid Home System Overview
  • Title: 10kW Solar Panel Hybrid Home System Overview
  • Title: 10kW Solar Panel Hybrid Home System Overview

Title: 10kW Solar Panel Hybrid Home System Overview

Payment Type:
L/C,T/T
Incoterm:
FOB,CFR,CIF
Min. Order:
1 Set/Sets
Transportation:
Ocean,Land,Air
Share:
  • Product Description
< >
Overview
Product Attributes

Brand: HAOXUAN

Supply Ability & Additional Information

Transportation: Ocean,Land,Air

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Packaging & Delivery
Selling Units:
Set/Sets
10kw Solar Panel system hybrid home system

Product Attributes

  • Brand: HAOXUAN
  • Warranty Period: 10 years
  • Place Of Origin: China
  • Types Of: Perc

Supply Ability & Additional Information

  • Packaging: Standard package
  • Productivity: 100 sets/day
  • Transportation: Ocean, Land, Air
  • Place of Origin: China
  • Supply Ability: 1 GW/year
  • Certificate: TUV/CQC/CE/IEC/INMETRO
  • HS Code: 8541402000
  • Port: Shanghai, Ningbo, Guangzhou
  • Payment Type: L/C, T/T
  • Incoterm: FOB, CFR, CIF, EXW, FCA, CPT, CIP

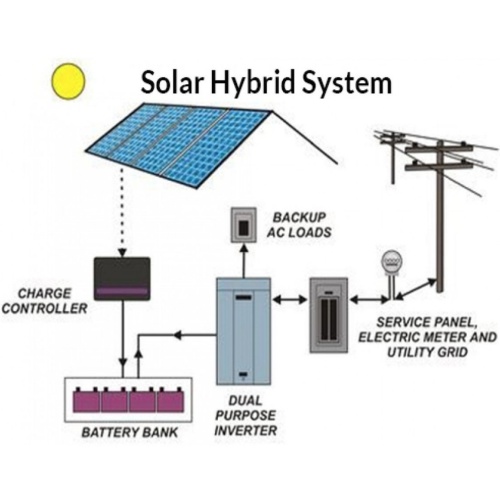

10 kW Solar Panel System 10kW 5kW Solar Hybrid Home System

20240418142214 Png

Product Introduction

Here's the list of key components:

Components Description Quantity Unit
Mono Solar Panel 280W 40 pcs
DC Disconnect Switch 2 pcs
Bracket 10kW 1 set
Hybrid Inverter 10kW 1 Set
Battery 200AH 18 pcs
DC Cable 4mm² 4mm² 200 meters
AC Disconnect Switch 1 pcs
PV Connector 20 pair
PV Tools 1 set
20240419133559 Png

Product Specifications

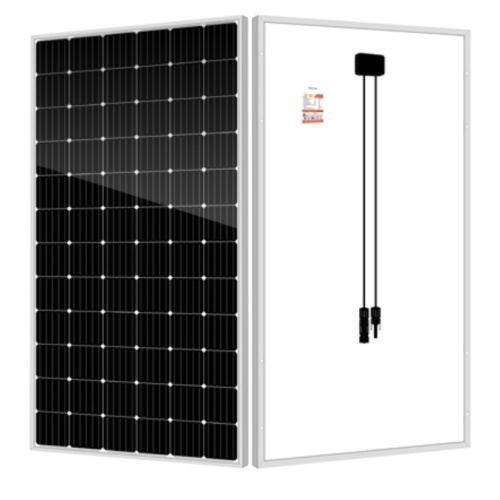

Mono Solar Panels

  • Brand: HAOXUAN
  • Power (Pmax): 280Wp
  • Dimension: 1640x992x35 mm
  • Working Voltage (Voc): 38.5V
  • Working Current (Imp): 9.63A
  • Weight: 20 kg

10kW Hybrid Inverter

  • Max. DC Input Power: 10kW
  • Max. DC Input Voltage: 600V
  • MPPT Voltage Range: 120-550V
  • Rated Grid Voltage: 230V (EU)
  • Warranty: 5 Years (STD), 10 Years (Optional)
  • WiFi Stick For STD, LAN & GPRS Optional.

Lead Acid GEL Battery

  • Capacity: 2.4 kWh
  • Nominal Voltage: 12 Vdc
  • Nominal Capacity: 200 AH
  • Depth of Discharge: 70%

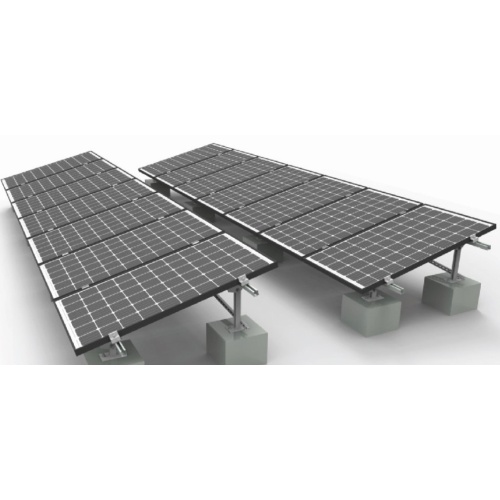

Bracket

  • Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt
  • Mid & End Clamps: 35, 40, 45, 50mm
  • L Foot Asphalt Shingle Mount & Hanger Bolt Optional
  • Cable Clip & Tie Optional
  • Ground Clip & Lugs Optional
20240418142238 Png 20240418142300 Png
